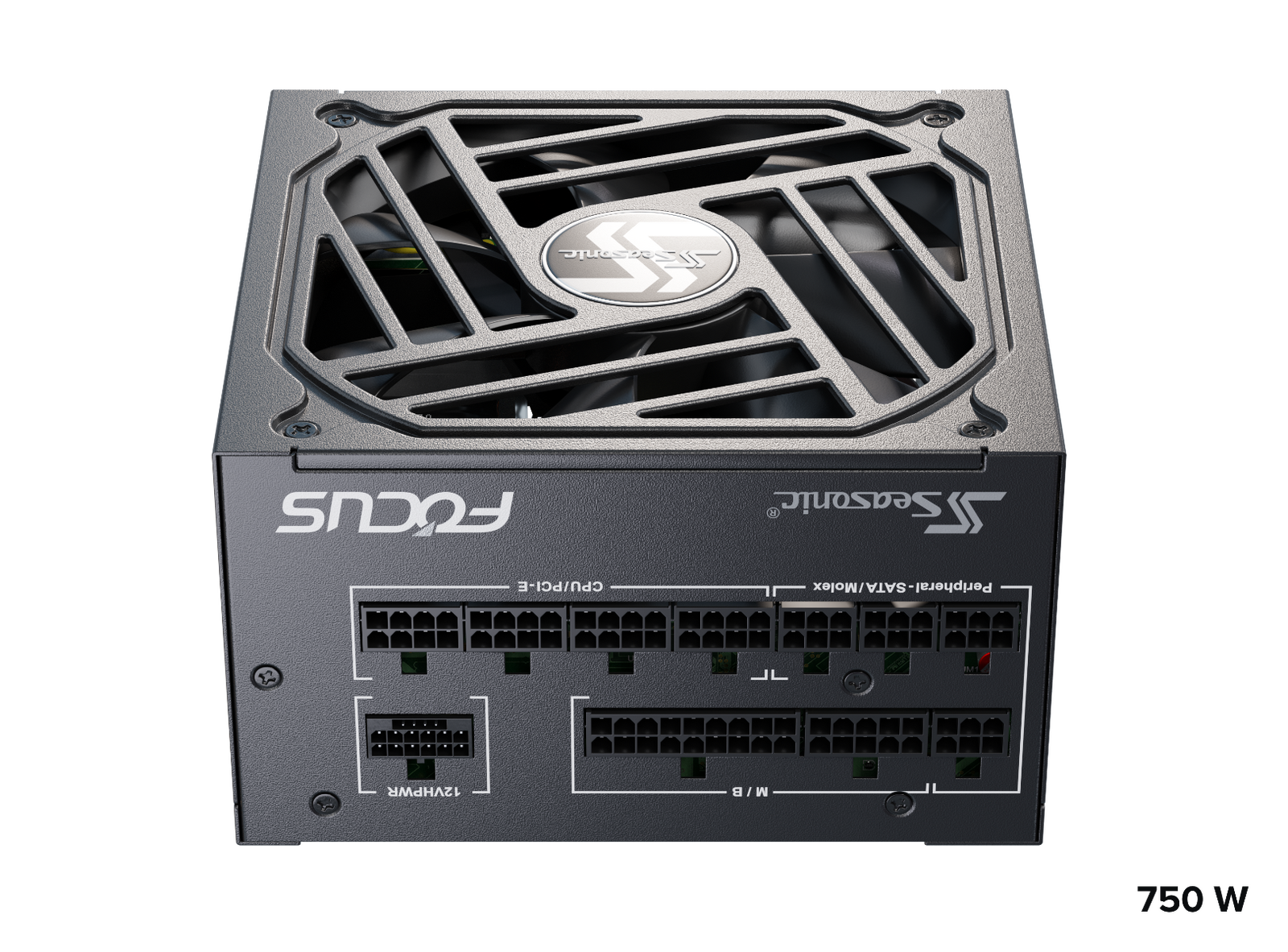

FEATURE SUMMARY
  • ATX 3.0 and PCIe 5.0 Cable (12VHPWR)
  • 80 PLUS Gold certified
  • Compact Size - 140 mm deep

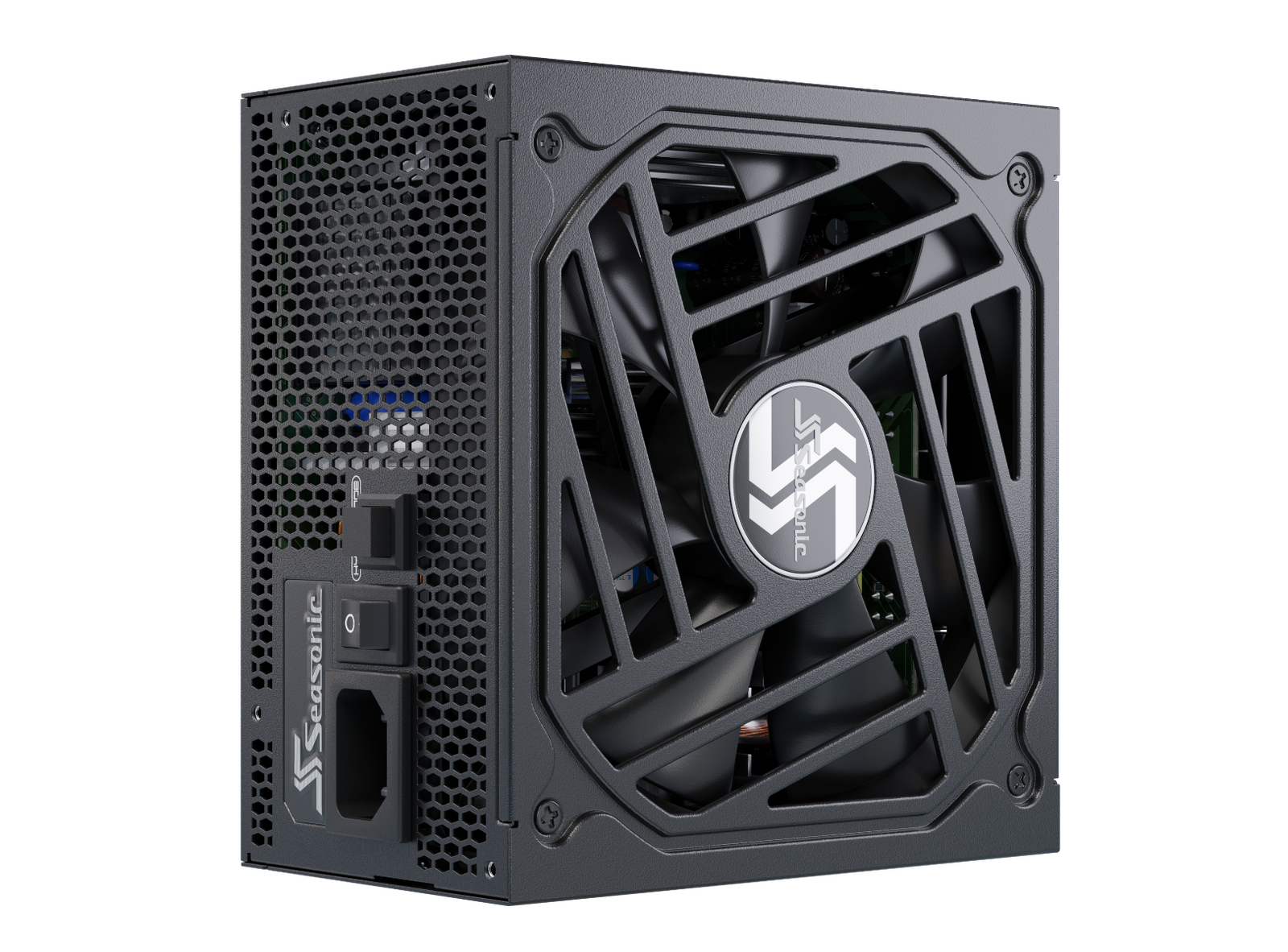

  • Top-Quality 135 mm FDB Fan
  • Digital Hybrid Fan Control
  • S3FC - Fanless until 30% load

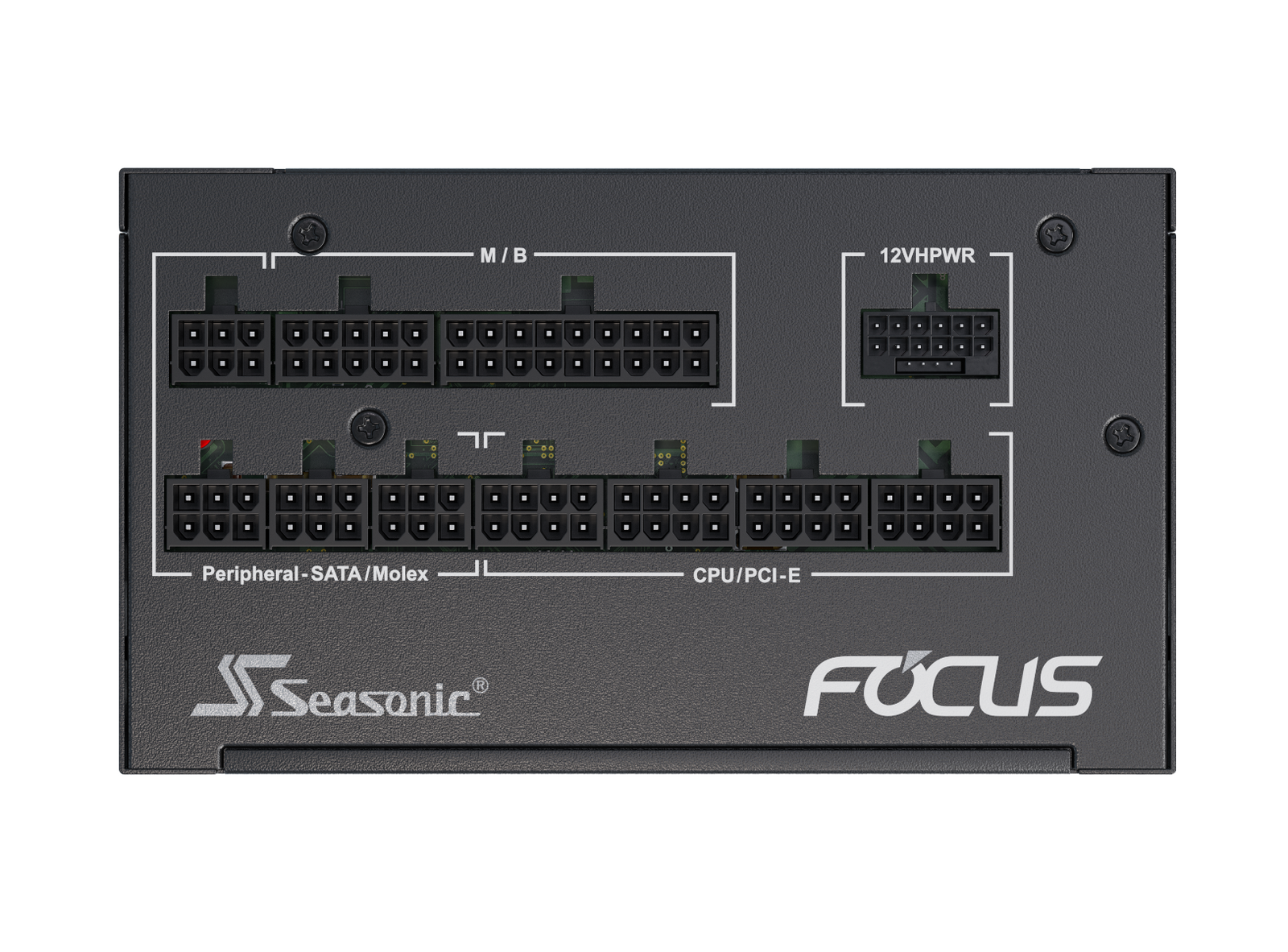

  • Cable-free Connection Design
  • Tight Voltage Regulation
  • Gold plated connectors
  • 10 years warranty


  • Technical Specifications
    80PLUS Gold
    Cybenetics Efficiency LevelTBA
    Cybenetics Noise LevelTBA
    Form Factor Intel ATX 12V
    Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size135 mm
    Fan ControlS3FC - Fanless until 30% load
    Fan BearingFluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40C, 15% - 65% RH
    Cable Information ModularityFully Modular
    Cable typeIndividual Black Cables with Braided Pattern
    Electrical Features Operating Temperature0 - 50C
    MTBF @ 25 C, excl. fan 100,000 hours
    AC InputFull Range
    ProtectionOPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 10 Years

    Power Output
    AC Input
    Voltage: 100 V - 240 V
    Current: 10 - 5 A
    Frequency: 50 Hz - 60 Hz
    DC Output
    Rail
    +3.3 V
    +5 V
    +12 V
    -12 V
    +5 VSB
    Maximum Power
    20 A
    20 A
    62 A
    0.3 A
    3 A
    100 W
    744 W
    3.6 W
    15 W
    Total Continuous Power
    750 W
    SKU V28-PSUSEAFOCUSGX750A3
    Brand Seasonic
    Shipping Weight 5.0000kg
    Shipping Width 0.190m
    Shipping Height 0.120m
    Shipping Length 0.310m
    Shipping Cubic 0.007000000m3
