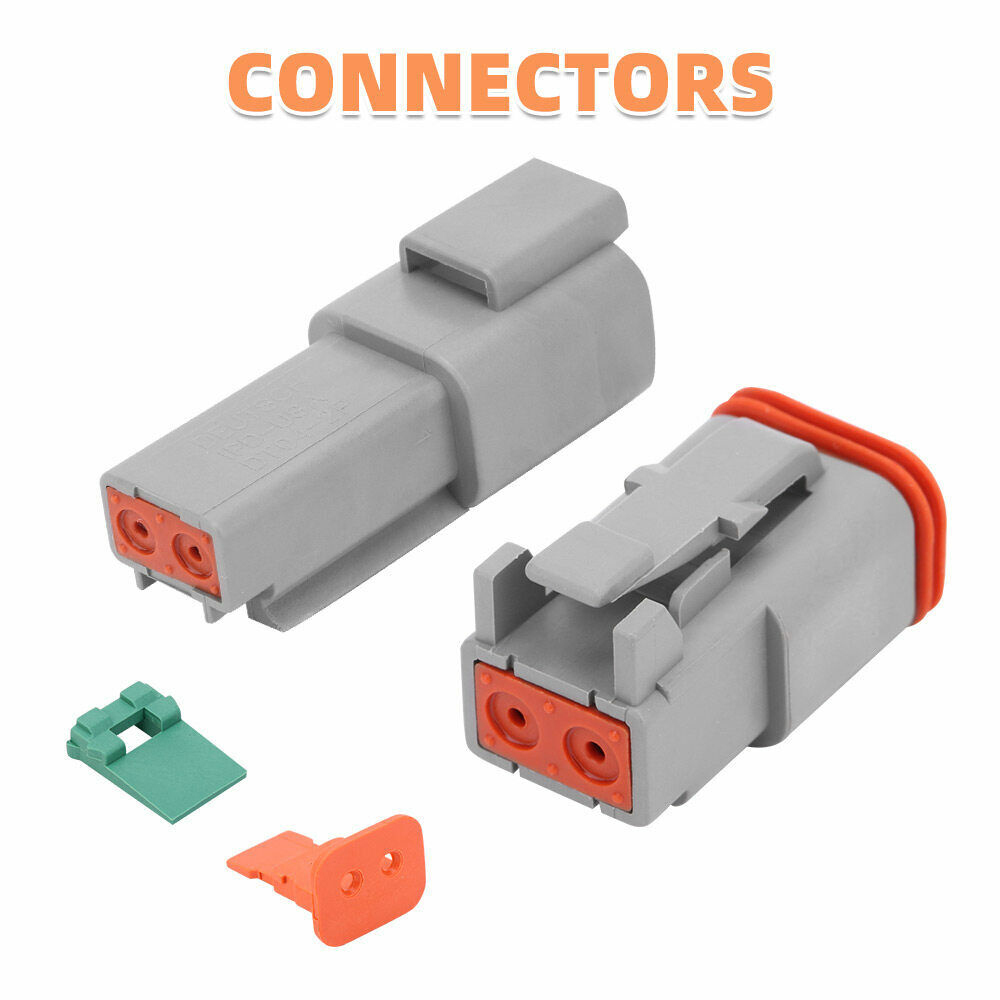

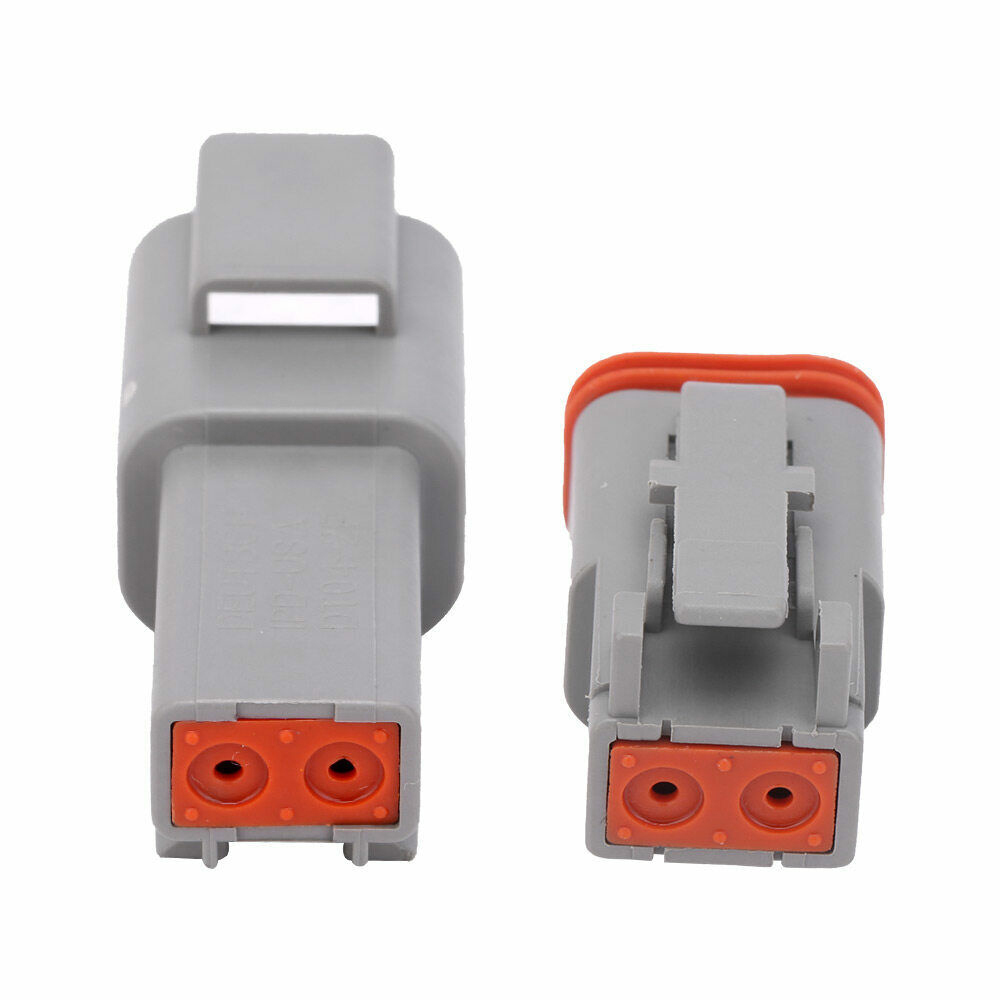

Deutsch DT Series 2-way Connectors

Deutsch DT series connectors are perfect for your power application requirements. Deutsch DT series offer proven reliability and rugged quality. DT series connectors accept size 16 contacts each with a 13-amp continuous capacity.

Key Features

Accepts size 16 contacts

14-20 AWG cable

Operating temperature -55C to +125C

Strong thermoplastic housing

Integrated latch for mating

Wedge locks to assure contacts aligned and retained

Silicone seals

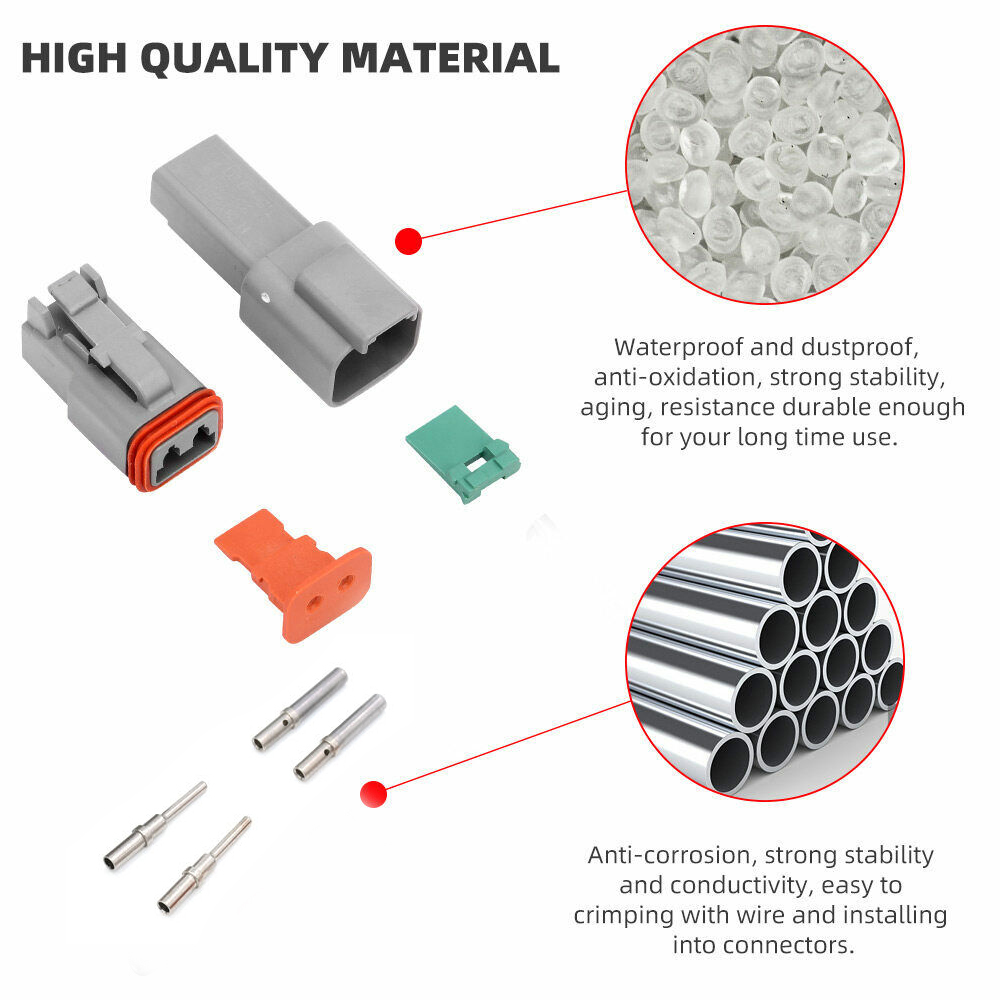

Material Specifications

Grommet material: Silicone rubber

Receptacle seal: Silicone rubber

Housing: Thermoplastic

Insert retainer: Thermoplastic

Wedge locks: Thermoplastic

Deutsch DT connectors stand up to harsh environments common in Industrial, Marine, Automotive, 4x4 and Heavy equipment applications.

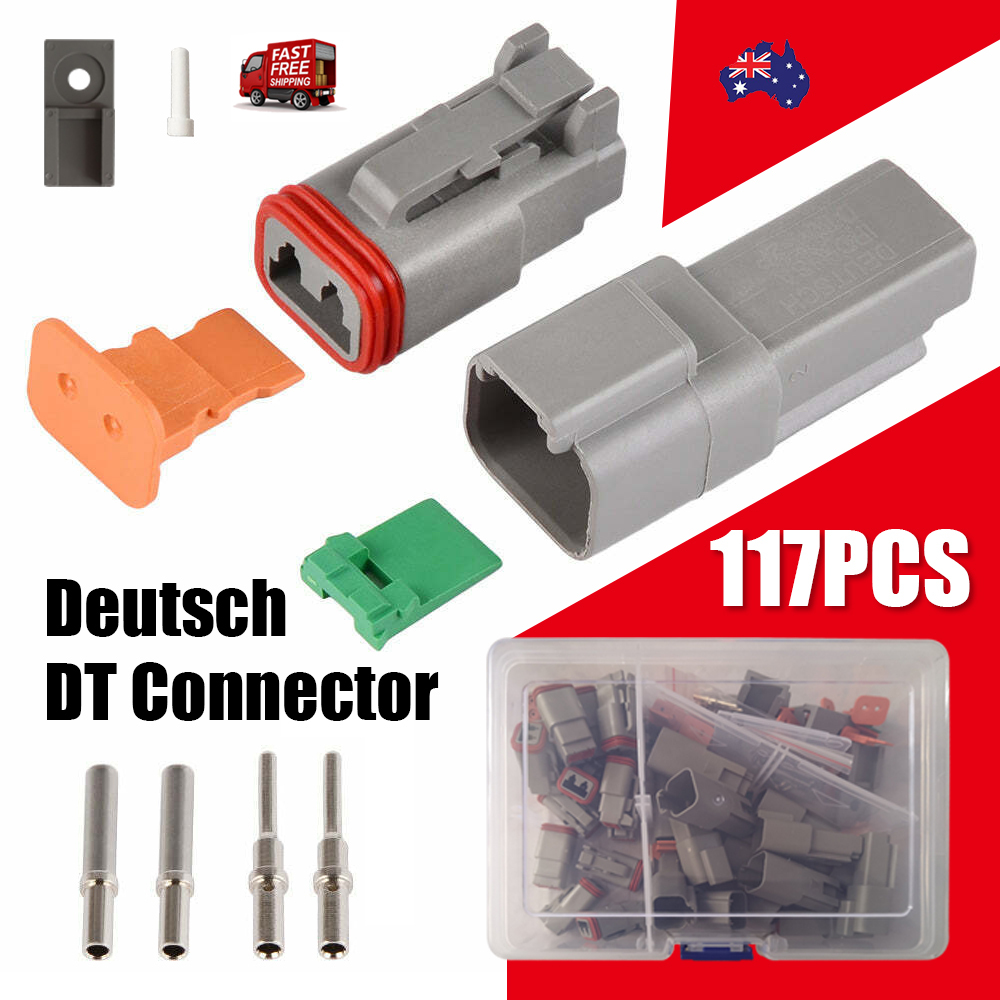

DT Kit Contents

15X DT 2-way Male Receptacle with wedge lock

15X DT 2-way Female Receptacle with wedge lock

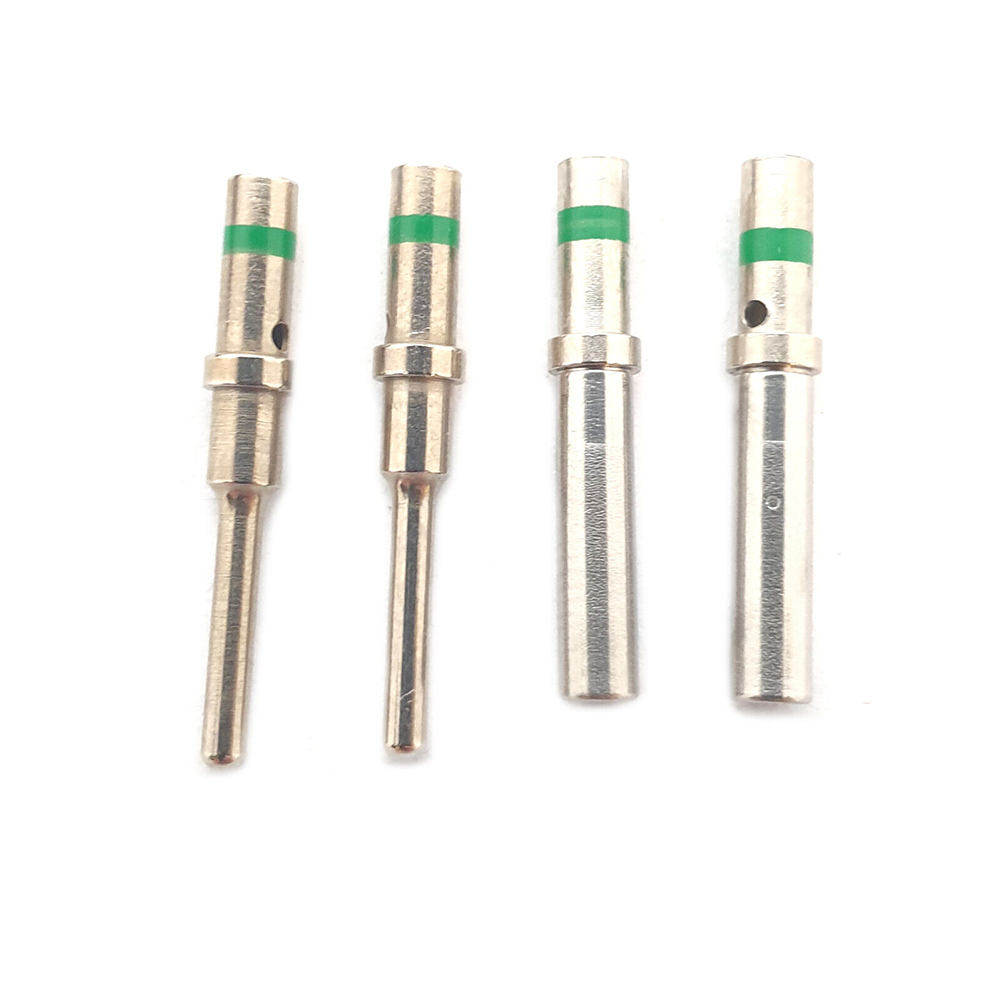

30X #16 Pin Male contacts 14-20AWG

30X #16 Pin Female contacts 14-20AWG

5X DT Mounting Clip

3XDust Plug

33

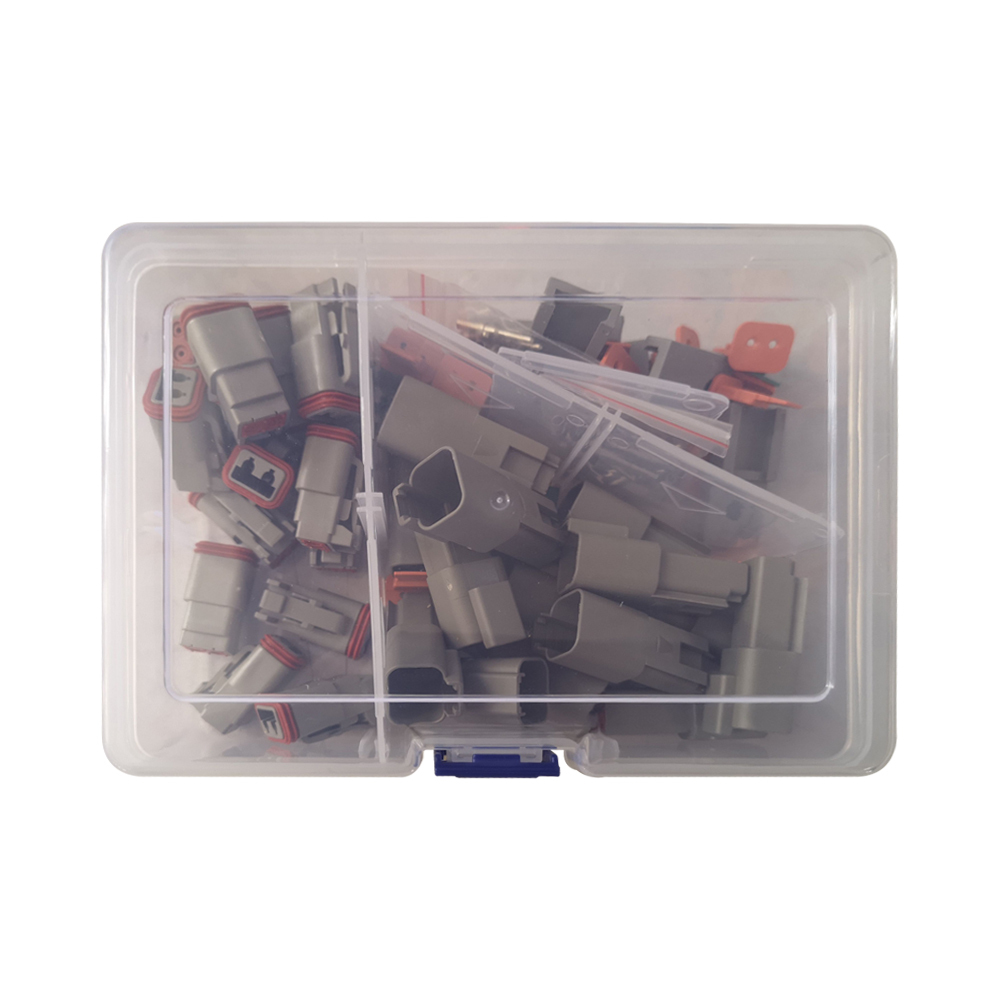

1X 6 Compartment Organizer

If the customer change their mind and want to cancel the order, please contact us within 2-3 hours after placing the order. Or, once the package is dispatched, we won't be able to intercept packages in transit. Please understand.
SKU V201-EBA1170BL8AU
Brand Does not apply
Shipping Weight 0.3500kg
Shipping Width 0.133m
Shipping Height 0.133m
Shipping Length 0.205m
Shipping Cubic 0.003600000m3
